Highest Specifications In The Industry
Standard Stainless-Steel Impeller

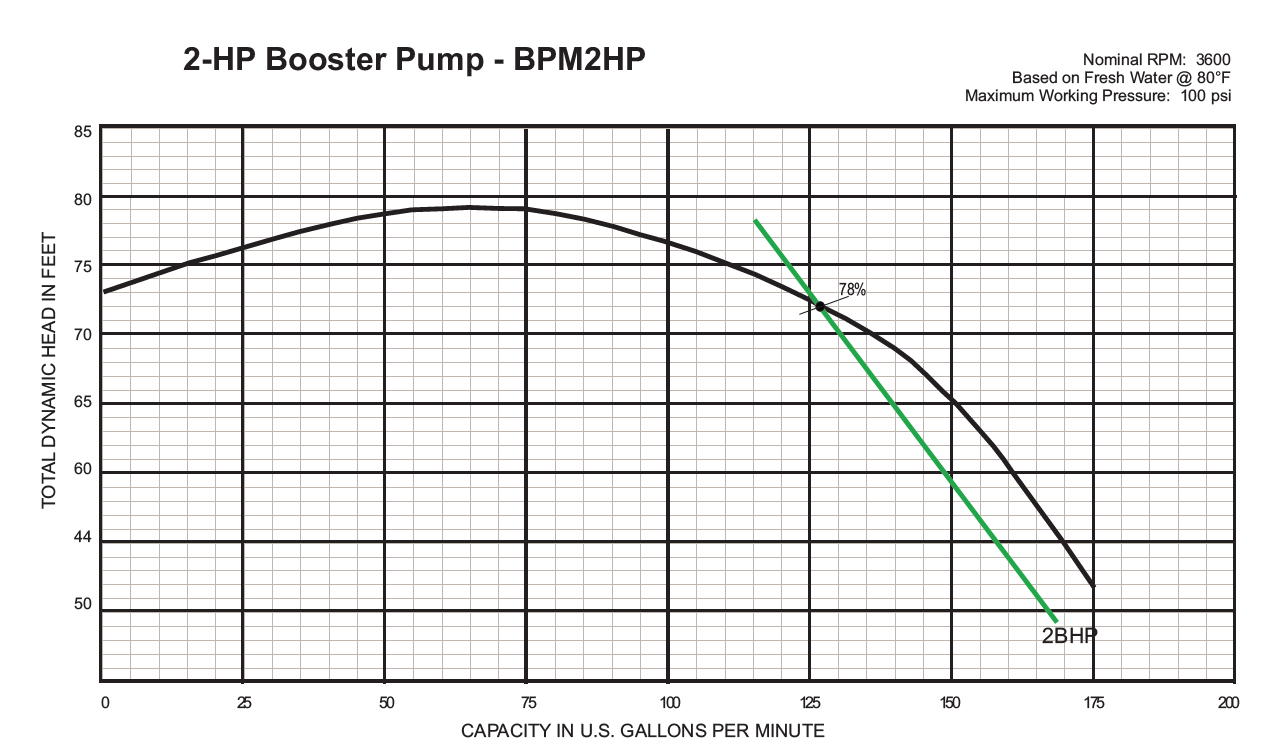

BPHP-U
2-HP Pivot Booster Pump
2 1/2″ suction x 2″ discharge
| BP2HP-X | XCAD Motor 2-HP, 130 GPM w/ Stainless Impeller |
| BP2HP-X-FL | XCAD Motor 2-HP, 130 GPM, Flanged Volute, w/ Stainless Impeller |
| BP2HPXWOVC | XCAD Motor 2-HP, 130 GPM, w/ Stainless Impeller, Less Volute Case |
| BP2HP-U | UMC Motor 2-HP, 130 GPM, w/ Stainless Impeller |
| BP2HP-U-FL | UMC Motor 2-HP, 130 GPM, Flanged Volute, w/ Stainless Impeller |
| BP2HPUWOVC | UMC Motor 2-HP, 130 GPM, Impeller, Less Volute Case |
BP5HP-U
5-HP Pivot Booster Pump
2 1/2″ suction x 2″ discharge
| BP5HP-U | UMC Motor 5-HP, 6 GPM |
| BP5HPUWOVC | UMC Motor 5-HP, 6 GPM, Impeller, Less Volute Case |
Pivot Booster Components
| BPVC | Volute Case |
| BPMBKT | Motor Bracket |
| BPIMP-SS | Stainless-Steel Impeller |
| BPMGSKT-P |
Polyethylene Motor Gasket |
| BPCGSKT | Paper Motor Case Gasket |
| BPIMPSPC-UMC | Impeller Spacer (UMC) |
| BPIMPSPC3 | Impeller Spacer (Bluffton) |
| BPSEAL | Shaft Seal |
| BP5VC | Volute Case |
| BP5MBKT | Motor Bracket |
| BP5IMP | Impeller |
| BP5GSKT | Motor Gasket |
| BP5STUD | Stud |
| BP5SEAL | Shaft Seal |
2HP parts are interchangeable with Berkeley model #C2MPS Booster Pumps
All Pumps are 50-60hz
