1/2″ Full-Circle Brass Impact Sprinkler



  • Full-circle impact – 23° trajectory
  • 1/2″ male NPT base
  • Single nozzle
  • 3/8-24 UNF nozzle threads
  • Factory installed 1/8″ or 7/64″ nozzle
  • Cast brass drive arm with I-Beam construction and Torque-Driven™ spoon technology with improved balance, rotation speed, and durability
  • Advanced arm balance with consistent rotation speed and increased durability
  • Suitable for a wide range of nozzles – 3/32″, 7/64″, 1/8″, 9/64″
  • Stainless-steel fulcrum pin, arm spring, and bearing spring
  • Cast brass body with large impact bridges and cored water passage
  • Coined body and arm ensures proper arm position and smooth operation
  • Suitable for solid set and portable applications
  • Made with domestic and foreign parts
  • Preassembled with XC-33 thread sealant

 Operate ONLY between 35 psi (min) and 60 psi (max)

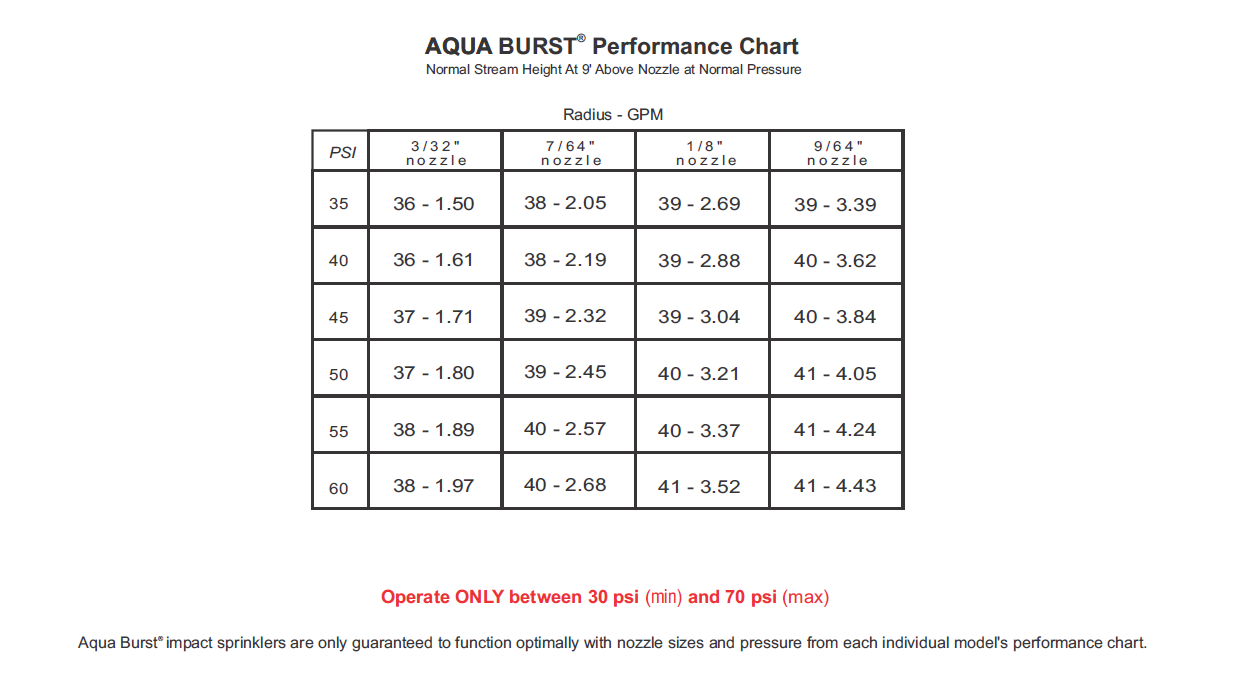

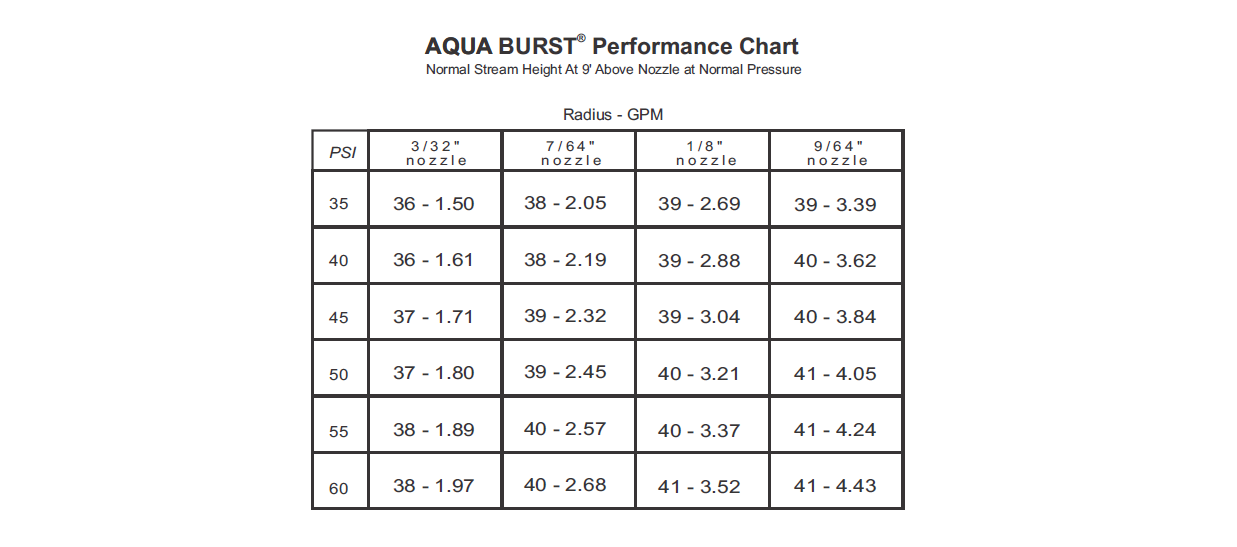

Aqua Burst® impact sprinklers are only guaranteed to function optimally with nozzle sizes and pressure from each individual model’s performance chart.
